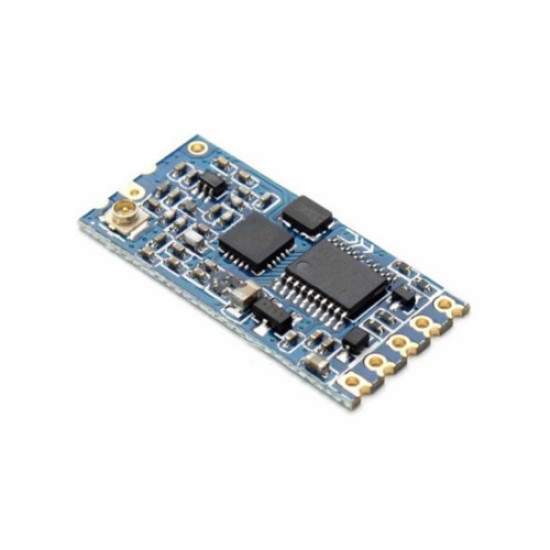

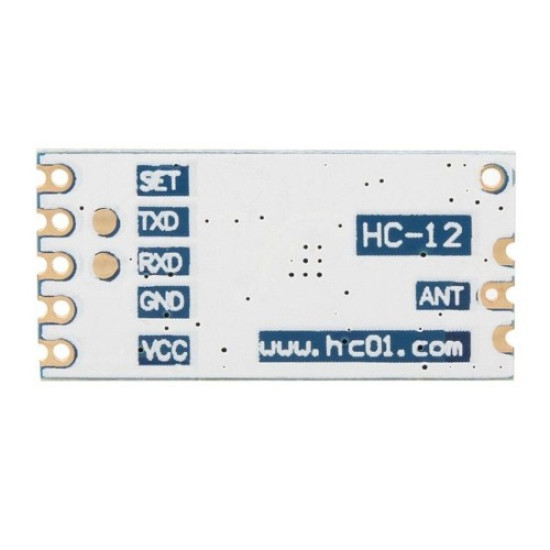

HC-12 433Mhz RF Modül

Kablosuz Haberleşme Alıcı Verici Seri Port Uzaktan Kontrol Sensör Data Logger Akıllı Ev Güvenlik

HC-11 ve HC-12 birbiri ile haberleşmez

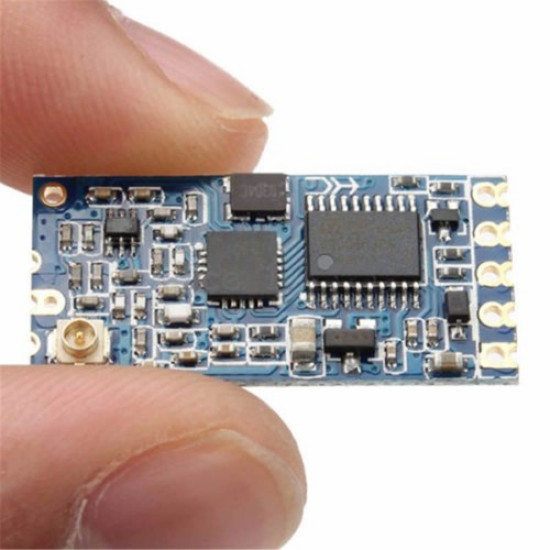

     433Mhz uzun mesafe rf haberleşme yapan alıcı verici modül. Açık alanda 1000 metre haberleşme yapabilir. TTl uart haberleşmesi ile modül ile haberleşme yapılabilir.

Özellikler:

• Çalışma voltajı:  DC 3.2V / 5.5V. uzun süre kullanımda 3.3V besleme tercih ediniz
• Çalışma akımı: 16mA
• Çalışma frekansı: 433.4 / 473.0MHz
• Haberleşme mesafesi: 600 Metre ( Açık alanda 1000 Metre Baud 5000bps )
• Haberleşme kanal sayısı: 100
• Rf gücü: 100mW ( ayarlanabilir )
• Fabrika ayarları: Mode FU3, Baudrate 9600bps, Kanal CH001 ( 433.4Mhz )
• İletişim arayüzü: TTL Uart
• İletişim hızı: 1.2Kbps  / 115.2Kbps（ default 9600 Kbps )
• Renk: Mavi
• Çalışma sıcaklığı:  -10C  /  75C
• 5 Pin boş bağlantı soketi
• Harici anten Ipx bağlantı soketi
• Anten boyu: 25mm

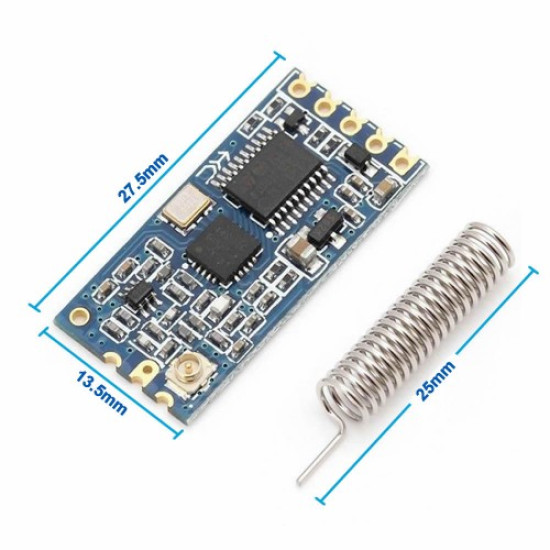

• Boyutlar: 13.5mm x  27.5mm
• Ağırlık:  1.5gr

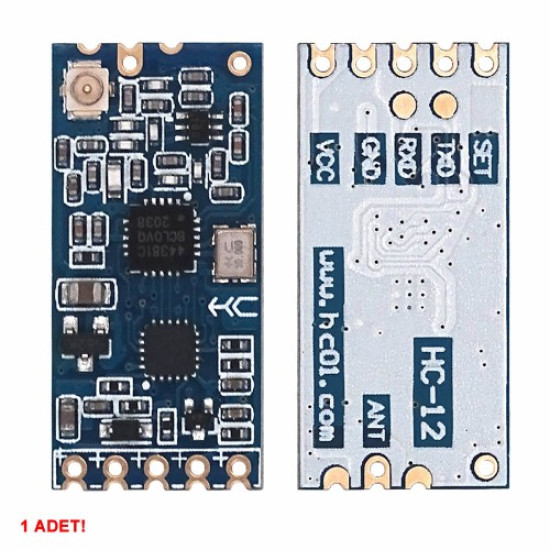

Paket İçeriği:

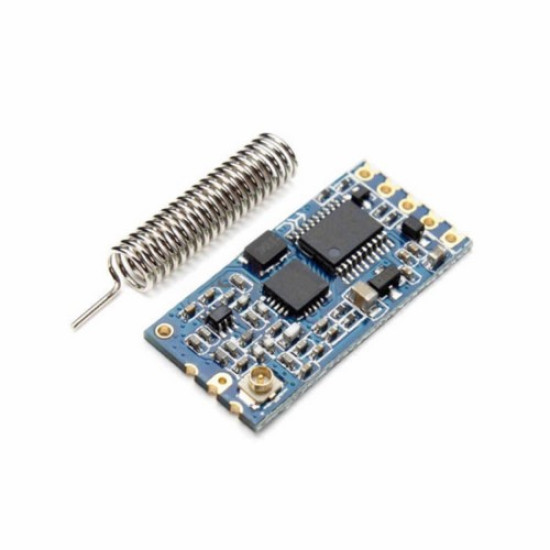

•  1 Adet HC-12 Modül
•  1 Adet helical Anten

AT command set:
_x000D_
_x000D_ Module parameters, AT command set
_x000D_ AT command is used to set the parameters of the function module and switching modules need to exit the setting mode after setting to take effect. Meanwhile, modify the parameters and functions, power-down is not lost.
_x000D_

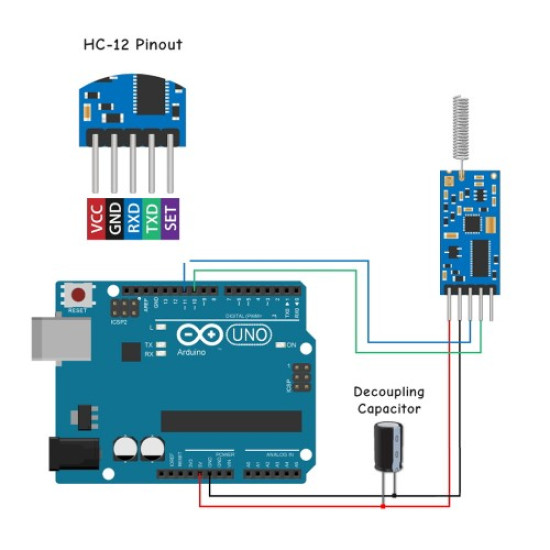

Enter the command mode:

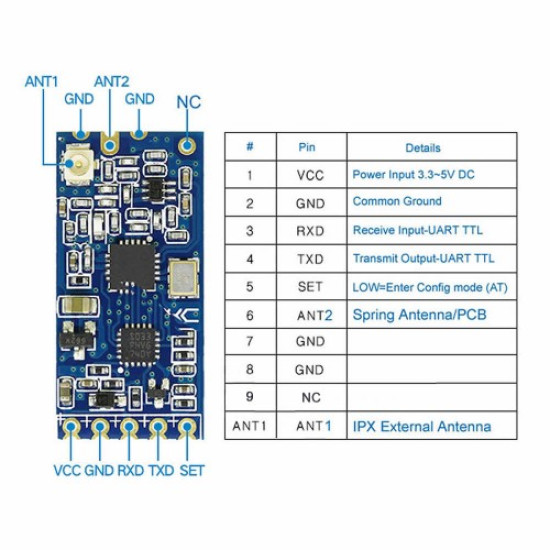

_x000D_ The first entry mode - normal use (has the power) in the first 5-pin "SET" is set low;
_x000D_ The second mode of entry - power, 5th pin "SET" again first set low on power.
_x000D_ Both methods can make the module into AT command mode, release ("SET" pin is not connected low) to exit command mode. After the exit command mode, if you change the module function, the function will be cut to the appropriate state.
_x000D_ The second way is fixed in serial format 9600, N, 1 into the AT.
_x000D_
Instructions:

_x000D_ 1. AT
_x000D_ Test instructions
_x000D_ Example: Send module commands "AT", the module returns "OK".
_x000D_
_x000D_ 2. AT + Bxxxx
_x000D_ Change the serial port baud rate command. You can set the baud rate is 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps and 115200bps. The factory default is 9600bps.
_x000D_ Example: Set the module serial port baud rate is 19200bps, please send module command "AT + B19200", the module returns
_x000D_ "OK + B19200".
_x000D_
_x000D_ 3. AT + Cxxx
_x000D_ Change the wireless communication channel, selectable from 001 to 127 (more than 100 radio channels after the communication distance not guaranteed). The default value is 001 radio channels, operating frequency is 433.4MHz. Step channel is 400KHz, the operating frequency of the channel 100 is 473.0 MHz.
_x000D_
_x000D_ Example:
_x000D_ Set module to channel 21, please send module command "AT + C021", the module returns "OK + C021".
_x000D_ After exiting the command mode, the module in the first 21 channels, operating frequency is 441.4 MHz.
_x000D_ Note: Because the wireless receiver module sensitivity HC-12 is relatively high, the baud rate is greater than when air 58000 bps, 5 must be shifted to the adjacent channel use. When the air baud rate is not greater than 58000 bps, if the short distance (10 meters) communication, but also need to stagger five adjacent channel use.
_x000D_
_x000D_ 4. AT + FUx

_x000D_ Change the module serial pass-through mode, there FU1, FU2 and FU3 three modes. Module default mode is FU3, two serial pass-through mode module must be set to the same communication. See detailed above, "wireless serial pass-through" part.
_x000D_ Example: Send module commands "AT + FU1", the module returns "AT + OK".
_x000D_
_x000D_ 5. AT + Px
_x000D_

_x000D_      The default setting is 8, maximum transmit power, communication distances. Transmit power level is set to 1, the minimum transmission power. In general, the transmission power of each drop 6dB, communication distance will be reduced by half.
_x000D_ Example: Send module commands "AT + P 5", the module returns "OK + P5". After exiting the command mode, the module transmit power is +11 dBm.
