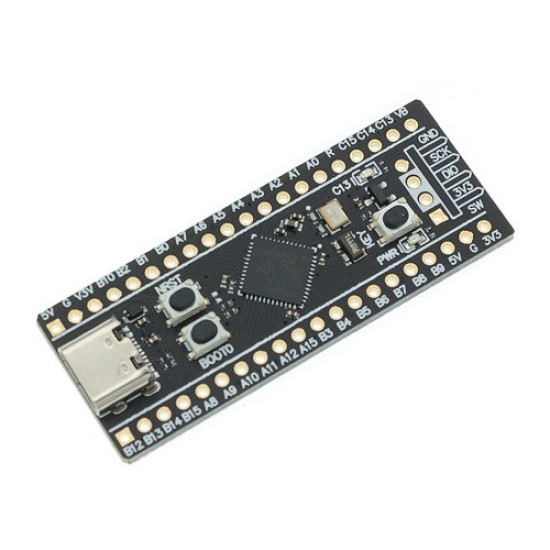

STM32F401C Geliştirme Kartı

STM32F401C CORE BOARD

Ürün üzerinde STM32F401CCU6 mcu bulunmaktadır.

Board versiyon V3.0

High-performance access line, Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 84 MHz CPU, ART Accelerator

High-performance access line, ARM Cortex-M4 core with DSP and FPU, 256 Kbytes Flash, 84 MHz CPU, ART Accelerator

      The STM32F401xB/STM32F401xC devices are based on the high-performance Arm® Cortex® -M4 32-bit RISC core operating at a frequency of up to 84 MHz. The Cortex®-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

     The STM32F401xB/STM32F401xC incorporate high-speed embedded memories (up to 256 Kbytes of Flash memory, up to 64 Kbytes of SRAM), and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
_x000D_      All devices offer one 12-bit ADC, a low-power RTC, six general-purpose 16-bit timers including one PWM timer for motor control, two general-purpose 32-bit timers. They also feature standard and advanced communication interfaces.
_x000D_ The STM32F401xB/STM32F401xC operate in the - 40 to + 125 °C temperature range from a 1.7 (PDR OFF) to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.
_x000D_ These features make the STM32F401xB/STM32F401xC microcontrollers suitable for a wide range of applications.

Why choose 401?

     In the F401 series, the chip is the cheapest, even cheaper than some F1, and crushed F1 on the main frequency, and has a floating-point arithmetic module, the IO port contains all the basic functions. Therefore, it is possible to provide a learning platform with a very high cost performance for beginners. In practical applications, it is not because the computing power is insufficient, and the IO port is incomplete and hinders development.

STM32F401CDU6

• Core Processor     ARM® Cortex®-M4
• Core Size     32-Bit
• Speed     84MHz
• Connectivity     I²C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG
• Peripherals     Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
• Number of I/O     36
• Program Memory Size      256KB (256K x 8)
• Program Memory Type     FLASH
• EEPROM Size     -
• RAM Size      64K x 8
• Voltage - Supply (Vcc/Vdd)     1.7V ~ 3.6V
• Data Converters     A/D 10x12b
• Oscillator Type     Internal
• Operating Temperature     -40°C ~ 85°C (TA)
• Mounting Type     Surface Mount
• Package / Case     48-UFQFN Exposed Pad
• Supplier Device Package     48-UFQFPN (7x7)

Paket içeriği :

•     1 Adet STM32F401C Geliştirme Kartı
•     2 Adet 20 Pin Erkek Header
